端子線末端色套

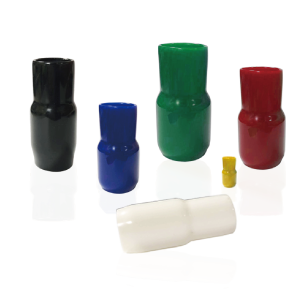

Wire end cap

Used in rounded crimping terminal exposed part of minitype wire.
There are six Kinds of color to be used in twenty three dimensions of wire.

Products Quality:

Made from high quality soft P.V.C.
We call them PVC insulating sleeves generally.
According to the rating temperature we differentiatwe them into two categories:

Common products: rated temperature is under 90˚C.
High level products: rated temperature is 105˚C.

Wire End Cap

ITEM NO.

Applicable wires

d1Ø

d2Ø

L1 ±1mm

L2 ±1mm

L ±2mm

t ±0.2mm

Packing unit

V 1.0	1.0mm²	3.5	2.8	5.5	7.5	13.0	0.7	100 pcs
V 1.0	1.0mm²	1.377	1.102	2.164	2.951	5.115	0.275	100 pcs
V 1.25	1.25mm²	3.3	3.1	7.0	8.0	15.0	0.6	100 pcs
V 1.25	1.25mm²	1.298	1.220	2.754	3.148	5.902	0.236	100 pcs
V 2.0	2.0mm²	4.5	3.7	8.0	8.0	16.0	0.7	100 pcs
V 2.0	2.0mm²	1.771	1.456	3.148	3.148	6.295	0.275	100 pcs
V 2.0/27	2.0mm²	4.5	3.7	8.0	19.0	27.0	0.7	100 pcs
V 2.0/27	2.0mm²	1.771	1.456	3.148	7.476	10.623	0.275	100 pcs
V 3.5	3.5mm²	5.7	4.1	9.0	9.0	18.0	0.8	100 pcs
V 3.5	3.5mm²	2.243	1.613	3.541	3.541	7.082	0.315	100 pcs
V 5.5	5.5mm²	5.7	5.2	10.0	10.0	20.0	0.8	100 pcs
V 5.5	5.5mm²	2.243	2.046	3.935	3.935	7.869	0.315	100 pcs
V 5.5/27	5.5mm²	5.7	5.2	10.0	17.0	27.0	0.8	100 pcs
V 5.5/27	5.5mm²	2.243	2.046	3.935	6.689	10.623	0.315	100 pcs
V 8.0	8.0mm²	7.2	6.2	11.0	10.0	21.0	1.0	100 pcs
V 8.0	8.0mm²	2.833	2.439	4.328	3.935	8.263	0.393	100 pcs
V 8.0-N	8.0mm²	7.2	7.0	11.0	10.0	21.0	1.0	100 pcs
V 8.0-N	8.0mm²	2.833	2.754	4.328	3.935	8.263	0.393	100 pcs
V 10	8.0mm²	8.5	6.6	13.0	13.0	26.0	1.0	100 pcs
V 10	8.0mm²	3.344	2.597	5.115	5.115	10.230	0.393	100 pcs
V 12	12mm²	10.0	7.3	13.0	14.0	27.0	1.1	100 pcs
V 12	12mm²	3.935	2.872	5.115	5.508	10.623	0.433	100 pcs
V 12/35	12mm²	10.0	7.3	13.0	22.0	35.0	1.1	100 pcs
V 12/35	12mm²	3.935	2.872	5.115	8.656	13.771	0.433	100 pcs
V 14	14mm²	10.0	8.0	15.0	13.0	28.0	1.1	100 pcs
V 14	14mm²	3.935	3.148	5.902	5.115	11.017	0.433	100 pcs
V 14/42	14mm²	10.0	8.0	15.0	27.0	42.0	1.1	100 pcs
V 14/42	14mm²	3.935	3.148	5.902	10.623	16.525	0.433	100 pcs
V 22	22mm²	12.0	9.5	15.0	14.0	29.0	1.2	100 pcs
V 22	22mm²	4.721	3.738	5.902	5.508	11.410	0.472	100 pcs
V 22/46	22mm²	12.0	9.5	15.0	31.0	46.0	1.2	100 pcs
V 22/46	22mm²	4.721	3.738	5.902	12.197	18.099	0.472	100 pcs
V 22-N	22mm²	12.0	10.0	15.0	14.0	29.0	1.2	100 pcs
V 22-N	22mm²	4.721	3.935	5.902	5.508	11.410	0.472	100 pcs
V 38	38mm²	14.0	11.8	17.0	17.0	34.0	1.4	100 pcs
V 38	38mm²	5.508	4.643	6.689	6.689	13.377	0.551	100 pcs
V 60	60mm²	17.0	13.9	22.0	20.0	42.0	1.5	100 pcs
V 60	60mm²	6.689	5.469	8.656	7.869	16.525	0.590	100 pcs
V 70	70mm²	17.9	15.1	26.0	19.0	45.0	1.5	100 pcs
V 70	70mm²	7.043	5.941	10.230	7.476	17.705	0.590	100 pcs
V 80	80mm²	19.0	16.0	25.0	21.0	46.0	1.5	50 pcs
V 80	80mm²	7.476	6.295	9.836	8.263	18.099	0.590	50 pcs
V 100	100mm²	22.0	18.0	31.0	24.0	55.0	1.7	50 pcs
V 100	100mm²	8.656	7.082	12.197	9.443	21.640	0.669	50 pcs
V 125	125mm²	24.0	20.0	32.0	28.0	60.0	1.8	50 pcs
V 125	125mm²	9.443	7.869	12.591	11.017	23.607	0.708	50 pcs
V 150	150mm²	26.0	22.0	34.0	31.0	65.0	1.8	50 pcs
V 150	150mm²	10.230	8.656	13.377	12.197	25.575	0.708	50 pcs
V 185	185mm²	29.0	24.0	33.3	33.4	66.7	1.8	50 pcs
V 185	185mm²	11.410	9.443	13.102	13.141	26.243	0.708	50 pcs
V 200	200mm²	32.2	24.0	38.0	31.0	69.0	2.0	50 pcs
V 200	200mm²	12.669	9.443	14.951	12.197	27.148	0.787	50 pcs
V 250	250mm²	36.5	27.2	42.0	33.0	75.0	2.0	50 pcs
V 250	250mm²	14.361	10.702	16.525	12.984	29.509	0.787	50 pcs
V 325	325mm²	36.7	30.0	42.0	33.0	75.0	2.0	25 pcs
V 325	325mm²	14.440	11.804	16.525	12.984	29.509	0.787	25 pcs
V 400	400mm²	45.1	37.5	43.0	40.0	83.0	2.0	25 pcs
V 400	400mm²	17.745	14.755	16.919	15.738	32.657	0.787	25 pcs
V 500	500mm²	48.2	40.2	43.0	42.0	85.0	2.0	25 pcs
V 500	500mm²	18.965	15.817	16.919	16.525	33.444	0.787	25 pcs
V 630	630mm²	53.8	45.2	48.0	45.0	93.0	2.0	25 pcs
V 630	630mm²	21.168	17.784	18.886	17.705	36.591	0.787	25 pcs
