雙線絕緣歐式端子

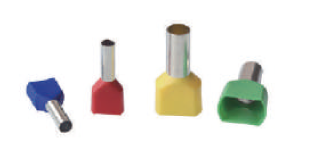

Insulated Twin Cord End Sleeves
Description
- Material: Cu Copper C1100
- Plated: Tinned
- Insulation: P.P. ※Temperature resistance:95℃ to 115℃
- PKG.: Quantity per pack: The quantity of each pack is defined according to different specifications and sizes, respectively: 500 pieces per pack/1000 pieces per pack...etc.
| WIRE RANGE |
Part No. | Color | Dimensions (mm) | ||||||
| (T:French) | (W:German) | (DIN:DIN) | ØD | W1 | W | L1 | L2 | ||
| 2X0.50 mm² | CT2 05008 | WHITE | ORANGE | WHITE | 1.5 | 2.5 | 4.7 | 8.0 | 15.0 |
| 2X0.75 mm² | CT2 07508 | BLUE | WHITE | GREY | 1.8 | 2.8 | 5.0 | 8.0 | 15.0 |
| CT2 07510 | 10.0 | 17.0 | |||||||
| 2X1.0 mm² | CT2 10008 | RED | YELLOW | RED | 2.0 | 3.4 | 5.4 | 8.0 | 15.0 |
| CT2 10010 | 10.0 | 17.0 | |||||||
| 2X1.5 mm² | CT2 15008 | BLACK | RED | BLACK | 2.2 | 3.6 | 6.6 | 8.0 | 16.0 |
| CT2 15012 | 12.0 | 20.0 | |||||||
| 2X2.5 mm² | CT2 25010 | GREY | BLUE | BLUE | 2.8 | 4.2 | 7.8 | 10.0 | 19.0 |
| CT2 25013 | 13.0 | 21.5 | |||||||
| 2X4.0 mm² | CT2 40012 | ORANGE | GREY | GREY | 3.7 | 4.9 | 8.8 | 12.0 | 23.0 |
| 2X6.0 mm² | CT2 60014 | GREEN | BLACK | YELLOW | 4.8 | 6.9 | 10.0 | 14.0 | 26.0 |
| 2X10 mm² | CT2 10014 | BROWN | IVORY | RED | 6.4 | 7.6 | 13.0 | 14.0 | 26.0 |
| 2X16 mm² | CT2 16014 | IVORY | GREEN | BLUE | 8.3 | 9.6 | 18.4 | 14.0 | 30.0 |
